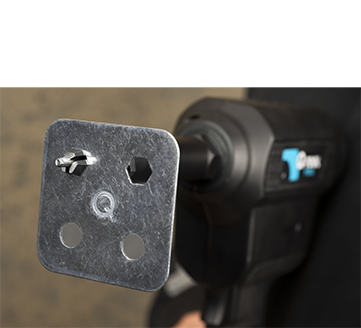

Our latest innovation, the Battery Punch Tool, is built on the robust and proven Battery-XL platform. Delivering a powerful 20,000 N of force, this tool is designed to effortlessly punch HEXAGONAL holes into pre-drilled materials up to 5.0 mm thick. Its straightforward design ensures ease of operation, making it an ideal solution for achieving fast and precise results in your applications.

Standard in the box

Spanner
2 batteries
Speed charger

Set-up

Anvil complete + punch case
M4 – M5 – M6 – M8

Options

XL-battery (4.0Ah)

Specifications

  • HEXAGONAL M4 | M5 | M6 | M8 *
  • ALL MATERIALS **
  • PULLING FORCE 20.000 N
  • ERGONOMIC BALANCE AND SOFT GRIP DESIGN
  • BRUSHLESS DC MOTOR
  • 2X LITHIUM BATTERY 20V/2.0AH WITH CHARGE INDICATION
  • SPEED CHARGER 100-240V/50-60HZ
  • TOOL WEIGHT 1.72 KG (BATTERY EXCLUDED)

* Comes with one pre-requested M-size, f.i. 0503QP12XL-M6
Conversion kits for M4 – M8 also sold separately
** Aluminium up to 5.0 mm | Steel up to 3.0 mm | Stainless steel up to 2.0 mm
